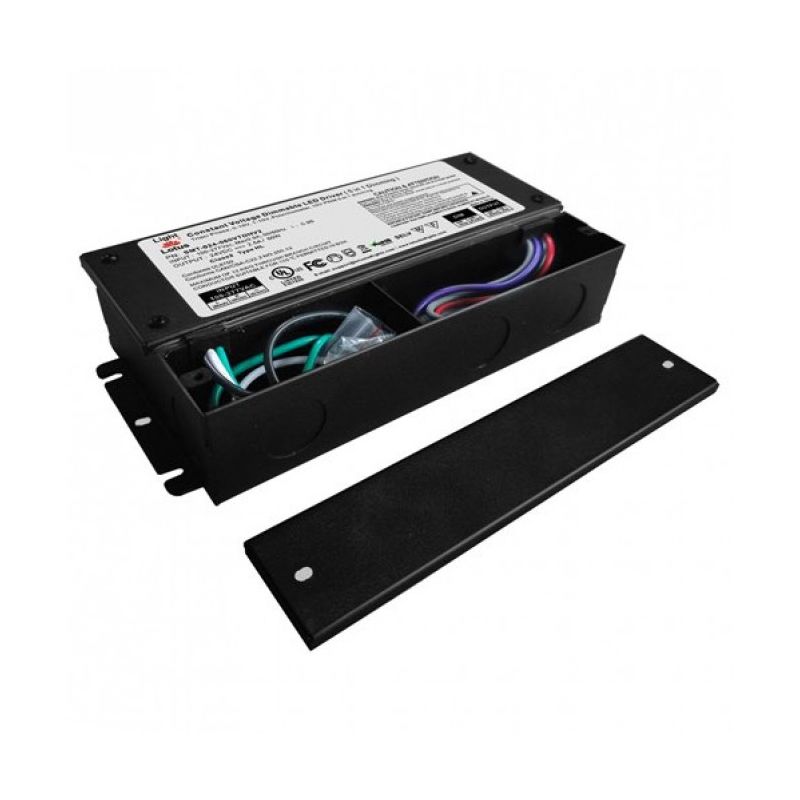

Lotus LED Lights 24V DC Driver - 60 Watt Capacity - 120V / 0-10V Dimmable
24V 60W class 2 power supply with built-in wiring compartments for line and low voltage connections 5-in-1 forward and reverse phase dimming:
TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
FEATURES & BENEFITS :
120V - 277V AC input
Built-in power factor correction, PF > 0.98 Protections:
short circuit, over-voltage, over-heat, over-load Multiple knock-outs for easy wiring
Minimum / Maximum Load: 6W / 60W
0.5 second start time
|
SPECIFICATION |
|
|
Applications |
LED Tape, 24V Ceiling Fixtures |
|
Power |
60 W |
|
Input |
120V - 277V AC |
|
Output V / A |
24V DC / 2.5A |
|
Dimmability |
TRIAC, 0-10V, 1-10V, Pot., 10V PWM |
|
Approved Location |
Dry, Damp & Wet Locations |
|
Wiring Volume |
5 cu in per chamber |
|
Ambient Temperature |
-40°F (-40°C) to +140°F (+60°C) |
|
Warranty |
7 Year |
|
Certification |
c UL us |
DIMENSIONS: 7 3/8" x 3 1/2" x 1 5/8"
